Front mount Intercooler images through Grill

[thbjcb]

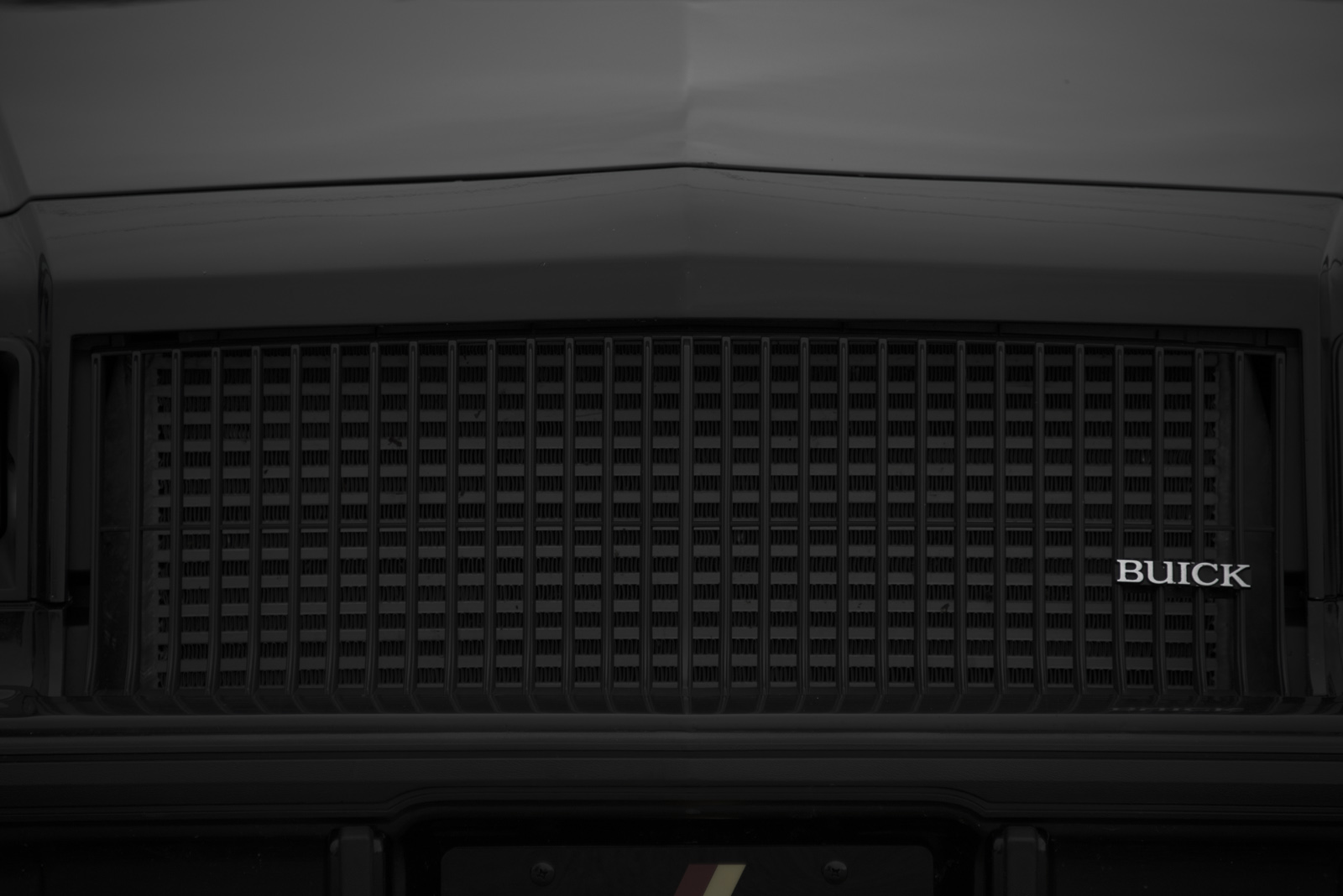

Working on installing my GN1 super extreme front mount and wondering if any one has pics of images put on the front so you can see it through the grill. I have seen a pic in the past where someone put the turbo 6 emblem but cant seem to find it. Don't want to paint it all black for the I mean business look. Not sure if I want to do it or not yet. Just need some pics to make up my mind.



[gn.87]

In my opinion the turbo 6 logo on the intercooler with the correct dimensions would look good.



[thbjcb]

In my opinion the turbo 6 logo on the intercooler with the correct dimensions would look good.
View attachment 268479

Thanks for the pic. I going with it. Now i just need to figure the size , location and if it should be solid or an outline



[VtheGNMan]

I think it'd look really cool! Be sure to post up pics when you get it done.



[thbjcb]

Found an image online and created a stencil with some tag board and a razor blade. Spent a while printing different sizes to get it to fit correctly. I also shifted the image 3/4" to the right to make it look more visually centered. The pic is a little fuzzy with poor lighting and the car is still jack but I think you get the idea. Happy with the way it turned out.



[deleonl]

I think it looks awesome brother. What size image did you end up with?



[Gene Van Horn]

That looks great, to bad mine already says rjc racing, nice job there.



[thbjcb]

8 3/4" high. Tomorrow I will put a picture of the template I used in case any one else wants to try it.



[VtheGNMan]

Nice jog, looks great! What did you use for paint?



[VtheGNMan]

Job. Nice job. Frankly autocorrect I am sick of your shirt!



[deezdad]

Job. Nice job. Frankly autocorrect I am sick of your shirt!

I once texted my gf I wanted to kick her puppy



[getdowngranny]

8 3/4" high. Tomorrow I will put a picture of the template I used in case any one else wants to try it.

I have the same intercooler and would like to use the template.



[thbjcb]

I scanned in the template. I used some washers and bolts to hold the tag board tight to the surface. Once you print it out you just need a razor blade and some patients. I used Eastwood satin radiator paint which supposed to have better heat transfer properties than normal paint.



[VtheGNMan]

Thank you! Very thorough and explanatory. Good job on this!



[GNVenom]



[dank GN]

My super extreme front mount . The only thing I don't like is the bumper covers the bottom half of the IC. I cut some holes in my bumper to get some air flow to it as u can see in the last picture



[precizion818]

That is a nice mod dude!


Sent from my iPhone using Tapatalk



[Johnnie]

I once texted my gf I wanted to kick her puppy



My lard thatz fundy!!!!!



[drturbo69]

Saw one painted with a wicked looking smiley face.
