Hi,
I've been researching Aluminum Radiators and I have seen a lot of specs thrown out there as far as size and what not. And since I can't seem to find it anywhere, I'm going to post the dimensions of my stock / OEM Radiator:
Overall Width (or Length if you will): 33" Inches
Tank to Tank Width (or Length if you will): 31" Inches
Overall Height: 19.5" Inches
Thickness: 2" Inches

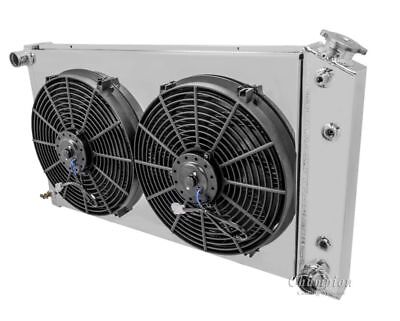

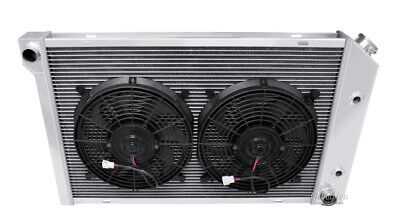

What I did not measure and / or cannot find is the "Inlet" and "Outlet" size (which I believe to be 1.5" Inches each respectively). However, can someone confirm this for me? As I've found what may be another new direct replacement aluminum radiator which includes both the original Oil and Trans Coolers, but, the only issue is that the Inlet size is 1 3/8" Inch and the Outlet is 1 5/8" Inch, does that sound right? Because everything else that I have seen has shown the '87 TB to have an 1 1/2" Inlet and Outlet?
Anybody know this off hand??
