NEW SS TEFLON FUEL LINES, FILTER AND FITTINGS

[Racetronix]

P/N FLK-G7B1

This is a complete made-to-measure fuel line kit with filter and fittings for the 1984-1987 Turbo Buicks. This kit replaces all the factory lines, fittings and filter assembly. This kit is designed to be used with the factory fuel rail and factory-fit / location regulator (1).
FEATURES:

• Compact Filter Housing - FRAM
• E-85 compatible filter element - Wix
• Hi-flow custom-machined fitting (feed)
• -8 Stainless Steel braided feed hose with black conductive coating
• -6 Stainless Steel braided return hose with black conductive coating
• Fragola Real Street Black Anodized Aluminum Reusable Fittings - installed
• Pressure / leak tested

After testing many filter housings and elements we have found that the Fram filter housing fitted with a Wix filter element provides superior performance when compared to other filter solutions costing multiples more. The Fram filter housing is compact, easy to install, well built and affordable. The Wix E-85 compatible filter elements are very affordable yet filter down to six microns and have plenty of surface area for long service life and maximum flow. This assembly will provide the best protection from contaminants reaching your injectors while flowing over 700LPH with approximately 1PSI of pressure drop.
The lines in this kit are stainless steel braid over Teflon. The SS braid offers great durability and a conductive path to dissipate static buildup caused by flowing fuel. The Teflon core is compatible with all fuels such as E-85 and oxygenated race fuels where rubber hose is not and will break down and crack over time. Teflon hose has a lower friction coefficient than rubber hose so it will flow better given the same inner diameter. Teflon has very low permeability so it will not allow vapors to escape like rubber hose so you can say goodbye to that constant smell of gas fumes in your garage. After much flow testing we have found that a -8 feed and -6 return line provide more than enough flow capacity to support our dual in-tank fuel systems at flow rates in excess of 740LPH.
Some of the most restrictive parts in the TR fuel system are the factory Saginaw (metric) fittings. While the internally seated o-rings provide a reliable seal, they are very restrictive by design. Off-the-shelf adapter fittings are also very restrictive because they rely on the same sealing mechanism that limits the maximum internal diameter of the fitting. To get around this problem, Racetronix machines metric adapter fittings in-house to fit the TR fuel rail and regulator that allows for maximum flow and a positive seal.
All Racetronix fuel lines are pressure tested for reliability.
1. Racetronix recommends the use of an Accufab regulator only. These regulators have proven to be ultra-reliable, stable and do not bleed down.

All parts made in the U.S.A.

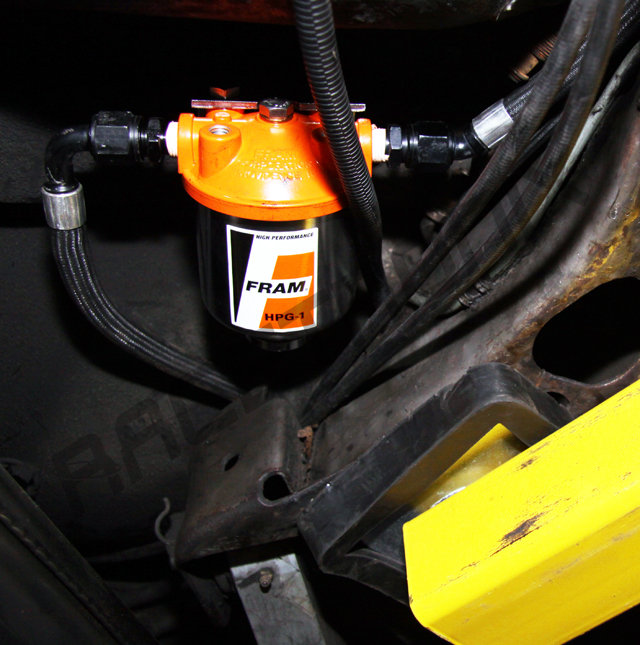

Filter mounting location next to factory filter location

Filter mounting location next to factory filter location

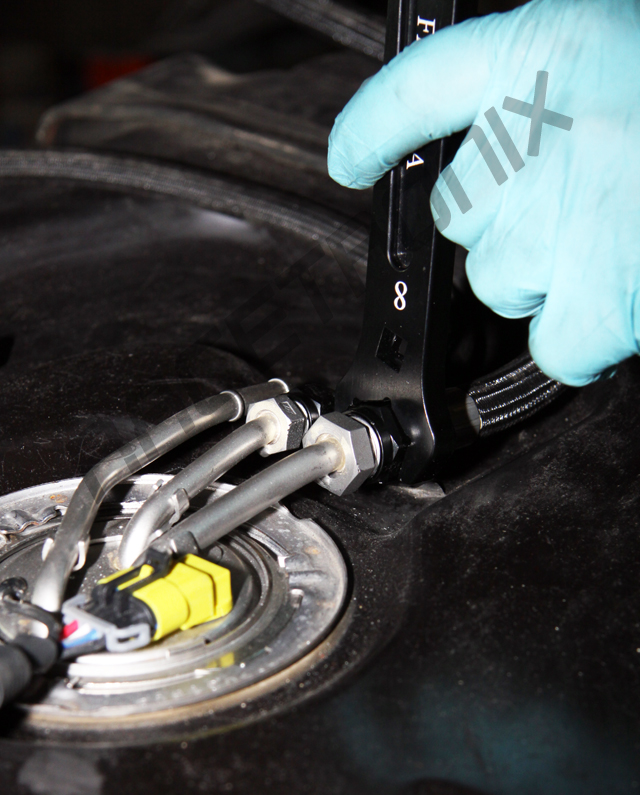

Sender hookup

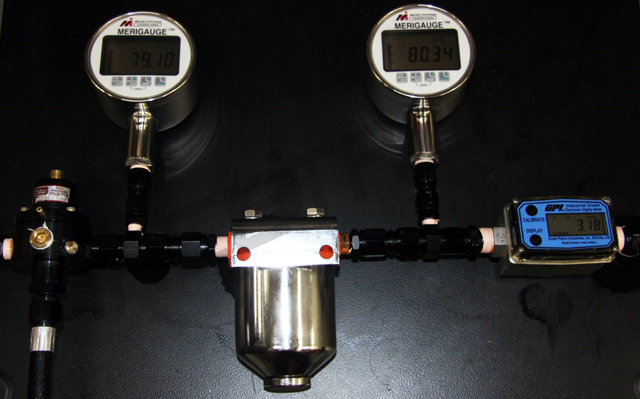

DP 2x340LPH Sender + Filter Flow test @ 80PSI @ 722LPH
