Transmission Coolers

[3.8 LA LEY]

I want to add a nice remote cooler with a fan for my 4l80E.

I'm kind of leaning towards buying something complete. any recommendations on which brands/kits to buy?

Also, want to see where you all are mounting them.

thanks !



[V6sleeper]

Derale

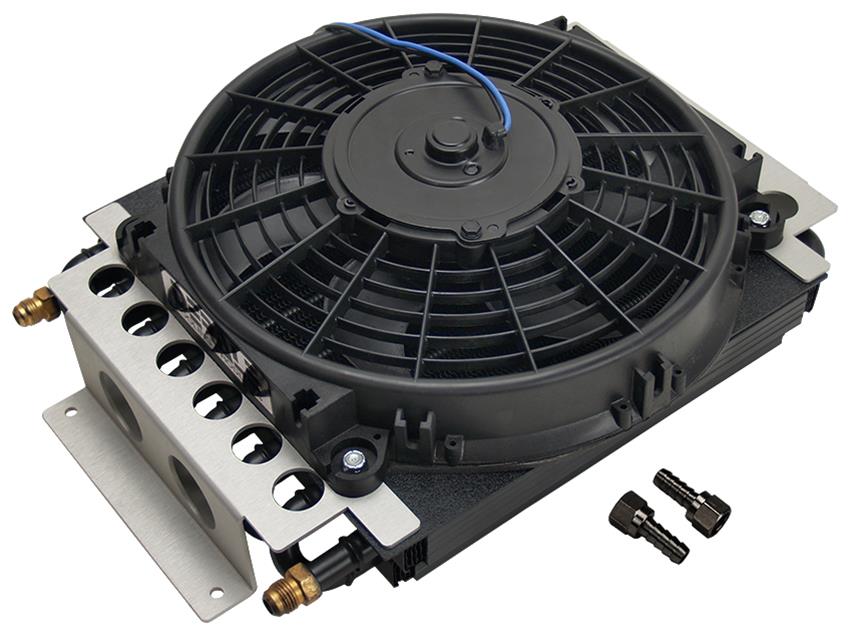

Derale Cooling Products 13700 Derale Electra-Cool Remote Fluid Coolers | Summit Racing

Free Shipping - Derale Electra-Cool Remote Fluid Coolers with qualifying orders of $109. Shop Fluid Coolers at Summit Racing.

www.summitracing.com



[3.8 LA LEY]

Derale

Derale Cooling Products 13700 Derale Electra-Cool Remote Fluid Coolers | Summit Racing

Free Shipping - Derale Electra-Cool Remote Fluid Coolers with qualifying orders of $109. Shop Fluid Coolers at Summit Racing.

www.summitracing.com

That's exactly what I was leaning towards

Cruz Performance has a nice setup without a fan though. But its an exact fit.

Any pics of the Derale installed ?



[V6sleeper]

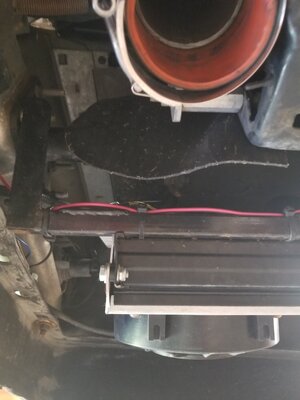

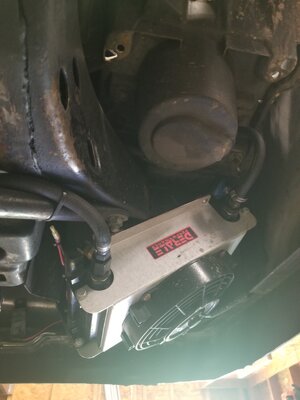

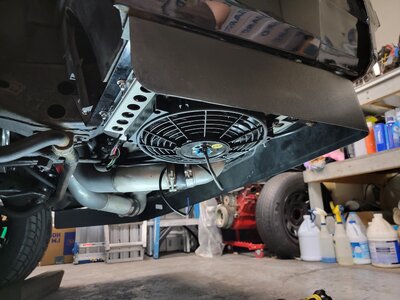

This is where mine was mounted but you obviously cant put it there if you have a stock location intercooler
I had a liquid inercooler on that particular car



[V6sleeper]

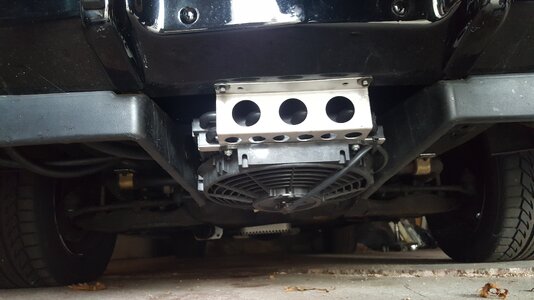

It looks low but its really not, pic is on an angle, but some people put it to the left of that under where the would be Alky pump is mounted

Temps would never be over 180 and i actually never witnessed the fan turn on but it didnt matter as long as the temps were in check



[dynoman]

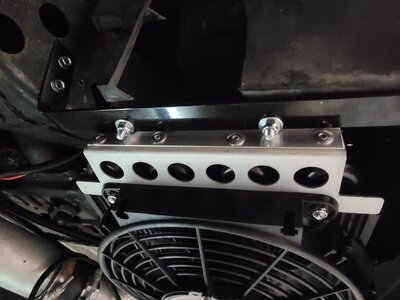

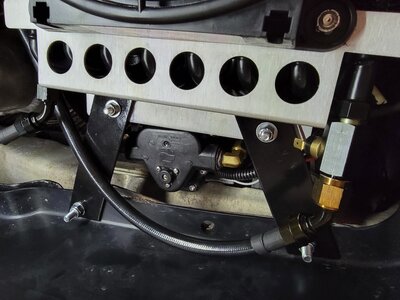

I'm running a Derale 25 row Hyper-Cool rated at 46,000 btu's , mounted under the battery tray on a bracket I made coming off of the bumper mount .

25 Row Hyper-Cool Remote Transmission Cooler Kit, -6AN

25 Row Hyper-Cool Remote Transmission Cooler Kit, -6AN Trans Cooler Kits Hyper-Cool Transmission Cooler Kit, -6AN 13960, 13760, 15860, 15960, 15660, 15865, 137xx, 158xx, 13764

derale.com

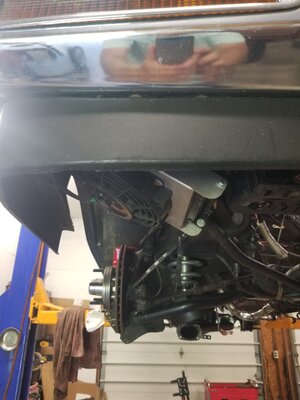

It looks low in the one picture but it is above the air dam .



[outatime86]

3rd for derale!
