Post pics of your enginebay fest

[jcuadra]

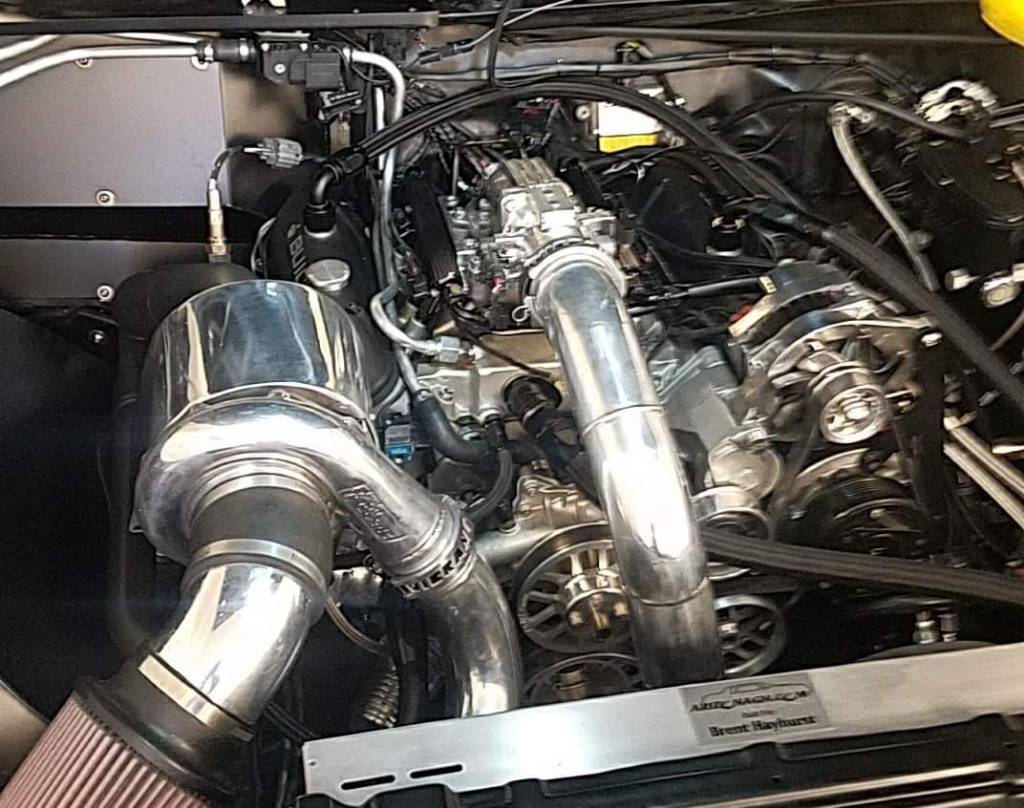

Looks like my setup. What turbo?

Sent from my SM-G950U using Tapatalk

Any pics of yours?



[Boost231]

Looks like my setup. What turbo?

Sent from my SM-G950U using Tapatalk

Any pics of yours?

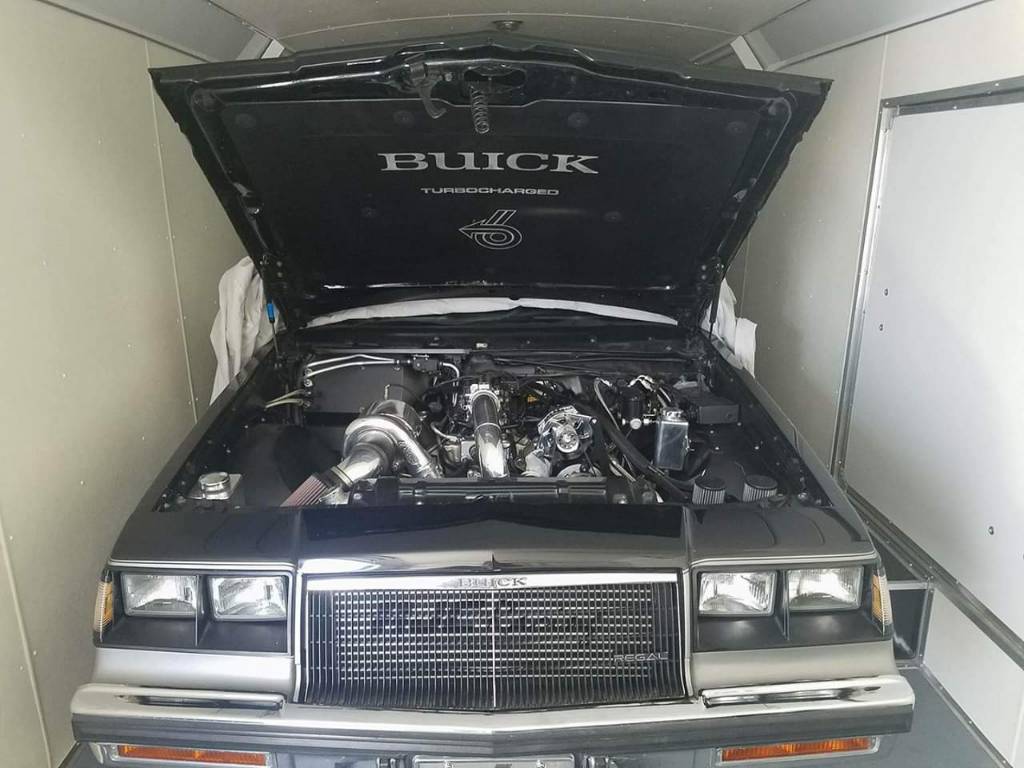

Nothing current. These are a little old

Sent from my SM-G950U using Tapatalk



[NY Twin Turbo]

I guess here it goes again.



[STGMAN]

Mine



[XXQUICK6XX]



[pacecarta]

you have the bracket wrong on the alternator ,. turnbuckle goes to top post , bracket wraps around altenator case and bolts to ear . main bracket also looks rotated but i guess you have a reason for that



[XXQUICK6XX]

you have the bracket wrong on the alternator ,. turnbuckle goes to top post , bracket wraps around altenator case and bolts to ear . main bracket also looks rotated but i guess you have a reason for that

There is a cooling tube from water pump into block on driver side so had to modify to make it work. and it is functional.



[1986 Buick GX1]

Here is a slightly newer version of mine.



[fast86gn]

Looking good. The old school Kenne Bell air intake very cool.



[TurboTGuy]

Waaaaaaaaaahhhhh!

But soon..... Very soon........



[NY Twin Turbo]

There is a cooling tube from water pump into block on driver side so had to modify to make it work. and it is functional.

Cooling tube?



[BobbyBuick]



[XXQUICK6XX]

Cooling tube?



[NY Twin Turbo]

View attachment 340965

What does that do? Why do you need it and I do not?

I'm just curious about the different reasons why you may need this.



[ShaunKris]

I guess here it goes again.

View attachment 331985View attachment 331986View attachment 331987View attachment 331988View attachment 331989View attachment 331990

That is a very nice engine bay. I especially love for some odd reason how you have the coils and spark plug boots aligned. Nice short direct wires.
I would love to do something like that on mine but that’s pretty radical compared to what I have.



[NY Twin Turbo]

That is a very nice engine bay. I especially love for some odd reason how you have the coils and spark plug boots aligned. Nice short direct wires.
I would love to do something like that on mine but that’s pretty radical compared to what I have.

Thank you. But quite frankly, the combination of parts are nothing special. And it's not that radical for a twin turbo configured combo. I'm sure it's a high 8 second combo in race tune. I'll probably never know. But It's actually a very mild build!

016 off-center stage block. Twin 60's. Champion heads and intake, custom sheet metal doghouse. Yada, yada, yada. Mostly off-the-shelf performance goodies. I just spent a lot of time and TLC getting it all fabbed up the way I wanted it.

If you like my coil set-up, my TR-6 build thread is here. https://turbobuick.com/threads/tr-6-on-twin-turbo.457492/



[Lockman]

Nothing current. These are a little old

Sent from my SM-G950U using Tapatalk

Hello My Friend.... Thank you, for helping me out with the OEM GM TPS for my ' 84 Hot Air. The guy that worked on it had a 86- 87 TPS on it !
( AFTERMARKET , Counter Clockwis ? ) Any way ...... Everybody , Boost231 is straight up a top notch Buick tech / mechanic and all around great person ! My pleasure doing a 'Lil business & Learning from reading your Posts. You are way ahead of my school , But I wanted to post my pics for ya'all's chuckles or whatever. Here's my workin' everyday, ' 84 Turbo V6 , in my 1975 CJ5 Jeep ! ( I Warned Ya , I don't race her, but she goes like a Bat outta Hell & will climb tree's if I let her ! )



[NY Twin Turbo]

Hello My Friend.... Thank you, for helping me out with the OEM GM TPS for my ' 84 Hot Air. The guy that worked on it had a 86- 87 TPS on it !
( AFTERMARKET , Counter Clockwis ? ) Any way ...... Everybody , Boost231 is straight up a top notch Buick tech / mechanic and all around great person ! My pleasure doing a 'Lil business & Learning from reading your Posts. You are way ahead of my school , But I wanted to post my pics for ya'all's chuckles or whatever. Here's my workin' everyday, ' 84 Turbo V6 , in my 1975 CJ5 Jeep ! ( I Warned Ya , I don't race her, but she goes like a Bat outta Hell & will climb tree's if I let her ! )View attachment 341146View attachment 341147
View attachment 341148

That looks real damned good, my friend!



[ShaunKris]

View attachment 157933View attachment 157934View attachment 157935 Might as well join:

I like the radiator cover.



[ShaunKris]

View attachment 230172View attachment 230175View attachment 230177

Nice
